Description
| Camera | |
| Image Sensor | SONY IMX335 |
| DSP | FH8538M |
| Resolution | 5.0M Pixel |
| Effective Pixels | 2592*1944 |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s |
| Sync System | Internal |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive Scan |
| Video Output Mode | 4 IN 1 ( AHD/CVI/TVI/ CVBS ) |
| Lens | |
| Focal Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | |
| Lens Pixels | |
| Auto Iris Support | N/A |
| Night Vision | |
| Infrared LED | 18pcs SMD IR LED, 25M IR Range |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Low illumination | 0.1Lux @F2.0 0 Lux with IR LED on |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Noise Reduction | 2D NR |
| WDR | DWDR |
| Picture Adjustment | Yes |
| General | |
| Camera Housing | Al-Alloy Case, White + Black Color Housing |
| Weatherproof Std. | Support Waterproof, IP66 |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Working Temperature | -10℃～50℃, RH95% Max |
| Power Source | DC12V±10%, 1000mA |

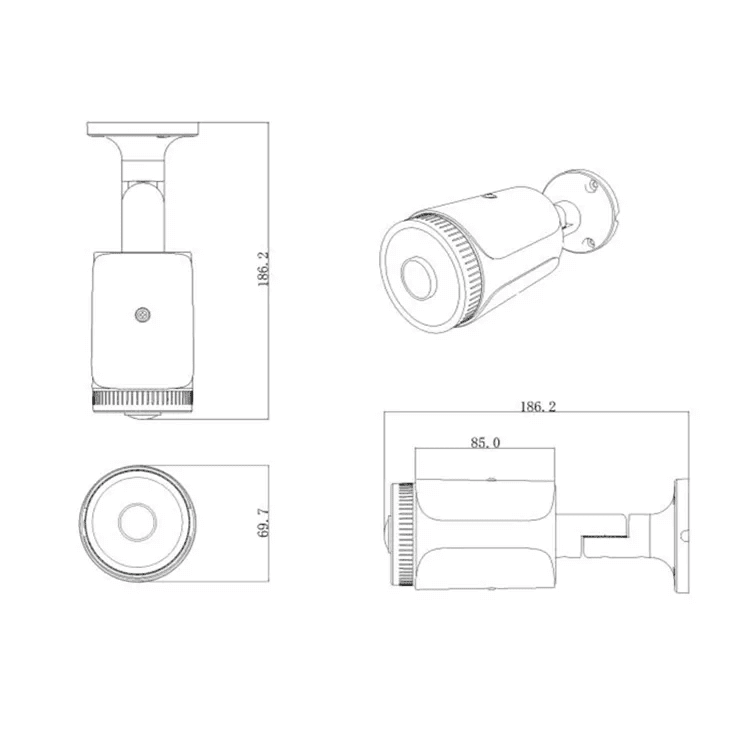

| Dimension | Size: 186(W) x70(H) x70(D)mm |
| Weight | 0.6 Kg |
