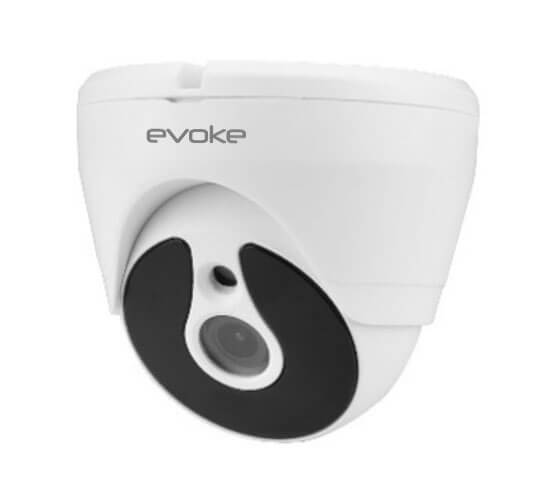

5 MP AHD Dome Camera

1,590.00

Day & Night Vision

Model: EHT4336635

1 in stock

Description

Image Sensor 1/2.8” CMOS
Total Pixels 2704(H) × 2104(V)Approx. 5.69M pixels
Effective Pixels 2616(H) × 1964(V)Approx. 5.14M pixels
Scanning System Progressive
Resolution 5MP/ 20FPS
Min-illumination Color:DSS:0.00017LUX, BW DSS: 0.00008 LUX
Video Output Analog HD:AHD/TVI/CVI and CVBS(960H) Composite Output(75Ω/BNC),4 in 1
SDI SD Ioutput:EX-SDI V1.0/2.0/3G
S/N Ratio More than 42Db(AGC off)
ACE & WDR Off/Low/Middle/High; WDR SNR: 120Db
Lens Motor/DC/Manual/ fixed
Brightness 0-20 steps
AGC 0-20 steps
SENS-up Off/X2/X4/X8/X16/X32
Shutter Speed AUTO/MANUAL(1/50\60 ~ 1/60,000 sec)
Defog Off/On, Low/Middle/High
BLC Off/BLC
HLC Off/HLC
Day & Night Auto/Color/B&W/EXTERN
Color (AWB) Auto/Auto ext/Preset/Manual
Monitor 1/2/3
3D-DNR Off/Low/Middle/High
Mirror Off/Low/Middle/High
H-V-REV Off/On
Sharpness Off/On
Motion 0-10steps
Privacy Mask 16Masks More
Language English
Power(Max.) supply DC12V±10%<1.6W(<130mA)
EX-SDI distance BNC cable 75-3 can reach 350m above
Size 127*127mm(H)
